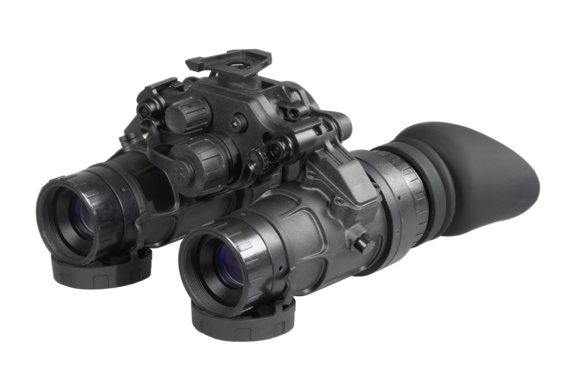

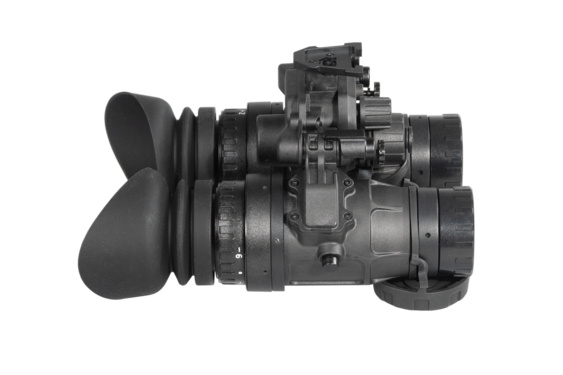

UNVG-51 HPW+ (Gen 2+ White Phosphor, 2100 FOM) | AGM

Designed for tactical use, law enforcement, security operations, training, and night hunting, the UNVG-51 is built around high-performance Gen 2+ or Gen 3 image intensifier tubes combined with advanced multi-coated optics, delivering a bright, sharp image even in rapidly changing lighting conditions.

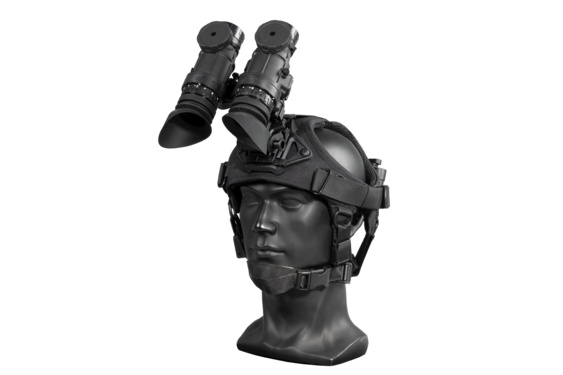

Manual gain control allows precise brightness tuning, while the independent dual-pod design supports both single-eye and dual-eye configurations. Each pod features an automatic power-off function when rotated out of position, conserving battery life and preventing image bloom.

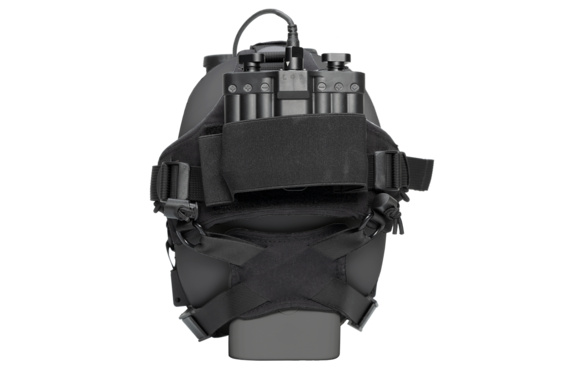

The rugged yet lightweight composite housing (approx. 550 g) is corrosion- and impact-resistant and fully compatible with standard dovetail helmet and head mounts. Powered by a single AA battery, the UNVG-51 provides up to 15 hours of runtime, extendable to 50–60 hours with the included external battery pack. An integrated infrared illuminator supports navigation, reading, and close-quarters tasks in complete darkness.

Optimized for PVS-14-style objective and eyepiece lenses, the UNVG-51 offers excellent compatibility with existing accessories, making it an ideal upgrade path for users transitioning from monocular systems to a wide-FOV dual-tube platform.

Key Features

• Dual-tube night vision goggle system with true stereoscopic vision

• Wide 51° field of view for enhanced situational awareness

• Supports Gen 2+ and Gen 3 image intensifier tubes

• Advanced multi-coated optics for superior image clarity

• Manual gain control for precise brightness adjustment

• Independent pod movement for single- or dual-eye use

• Auto-off function when pods are rotated aside

• Lightweight, impact- and corrosion-resistant composite housing

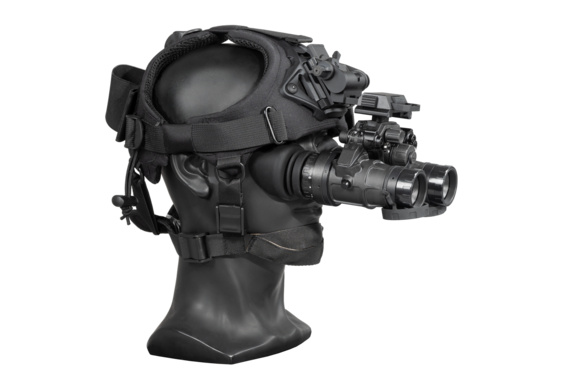

• Compatible with dovetail-type helmet and head mounts

• PVS-14-compatible lenses for seamless accessory integration

• Integrated IR illuminator for close-range and indoor use

• Extended runtime with external battery pack (included)

• Simplified interpupillary distance (IPD) stop system

Technical Specifications

• FOM (HPW+): 2100

• Resolution (HPW+): 68 lp/mm

• Magnification: 1×

• Lens System: 19 mm, f/1.26

• Field of View: 51°

• Exit Pupil: 14 mm

• Focus Range: 0.25 m to infinity

• Diopter Adjustment: −6 to +2

• Interpupillary Distance: 56–72 mm

• Eye Relief: 17 mm

• Manual Gain Control: Yes

• Infrared Illuminator: Yes

• Battery Type: 1× AA (1.5 V) or external battery pack

• Battery Life (20 °C, IR off):

  • AA: up to 15 h

  • External pack (4× AA): up to 60 h

  • External pack (2× CR123A): up to 40 h

• Protection Rating: IP67

• Operating Temperature: −40 °C to +50 °C

• Storage Temperature: −50 °C to +70 °C

• Weight (without batteries):

  • Goggles: 550 g (1.2 lb)

  • Battery Pack: 250 g (0.55 lb)

• Dimensions:

  • Goggles: 101 × 116 × 85 mm

  • Battery Pack: 102 × 86 × 34 mm

Package Includes

• AGM UNVG-51 Night Vision Goggles

• External Battery Pack

• Connecting Cable with Battery Adapter

• Demist Shields (2)

• Sacrificial Windows (2)

• Neck Strap

• Carrying Case

• Lens Cloth

• User Manual

• AA Battery

• Hard Case
